Antenna Installation November 2012

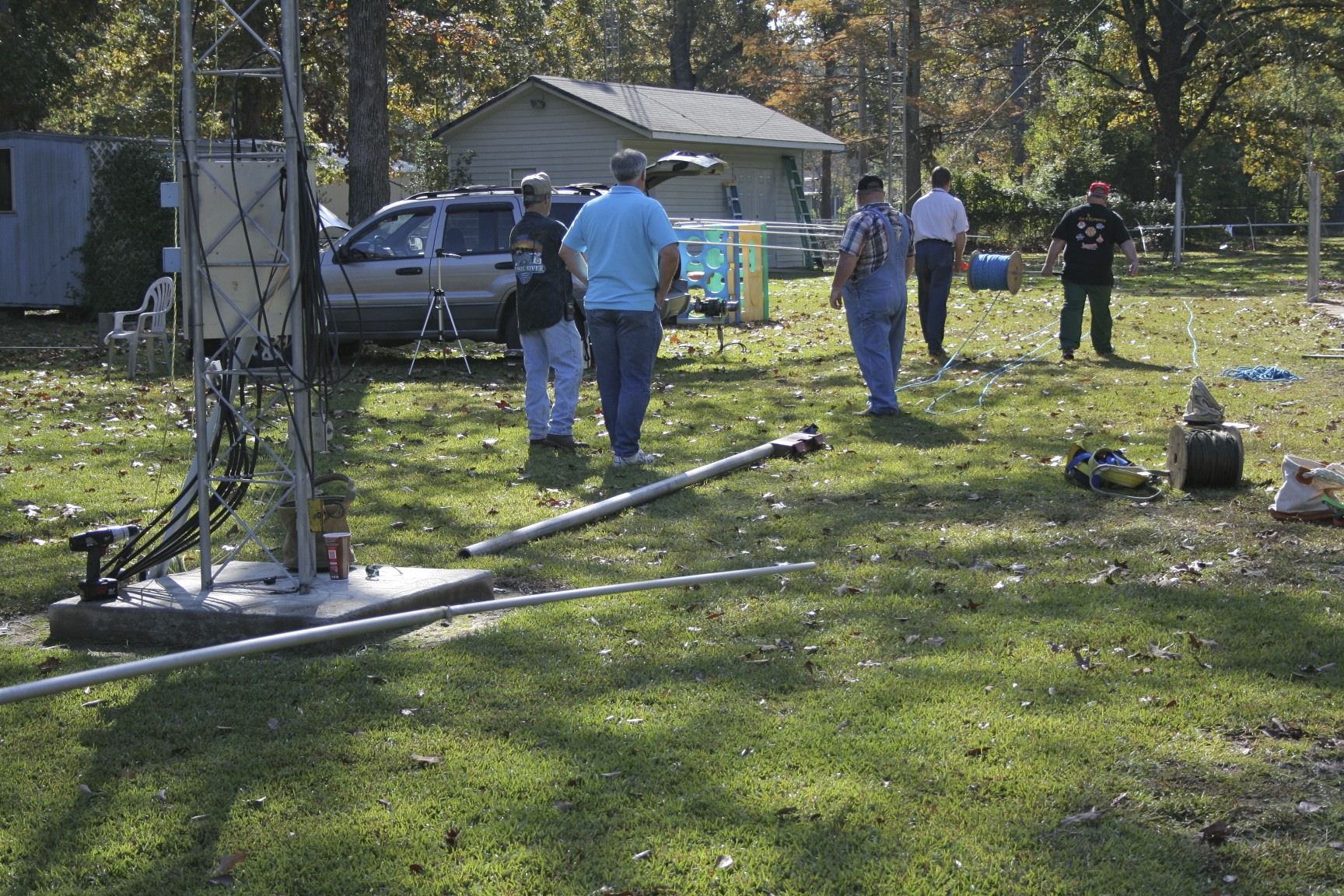

Laying out gin pole, ropes, etc., for days activities

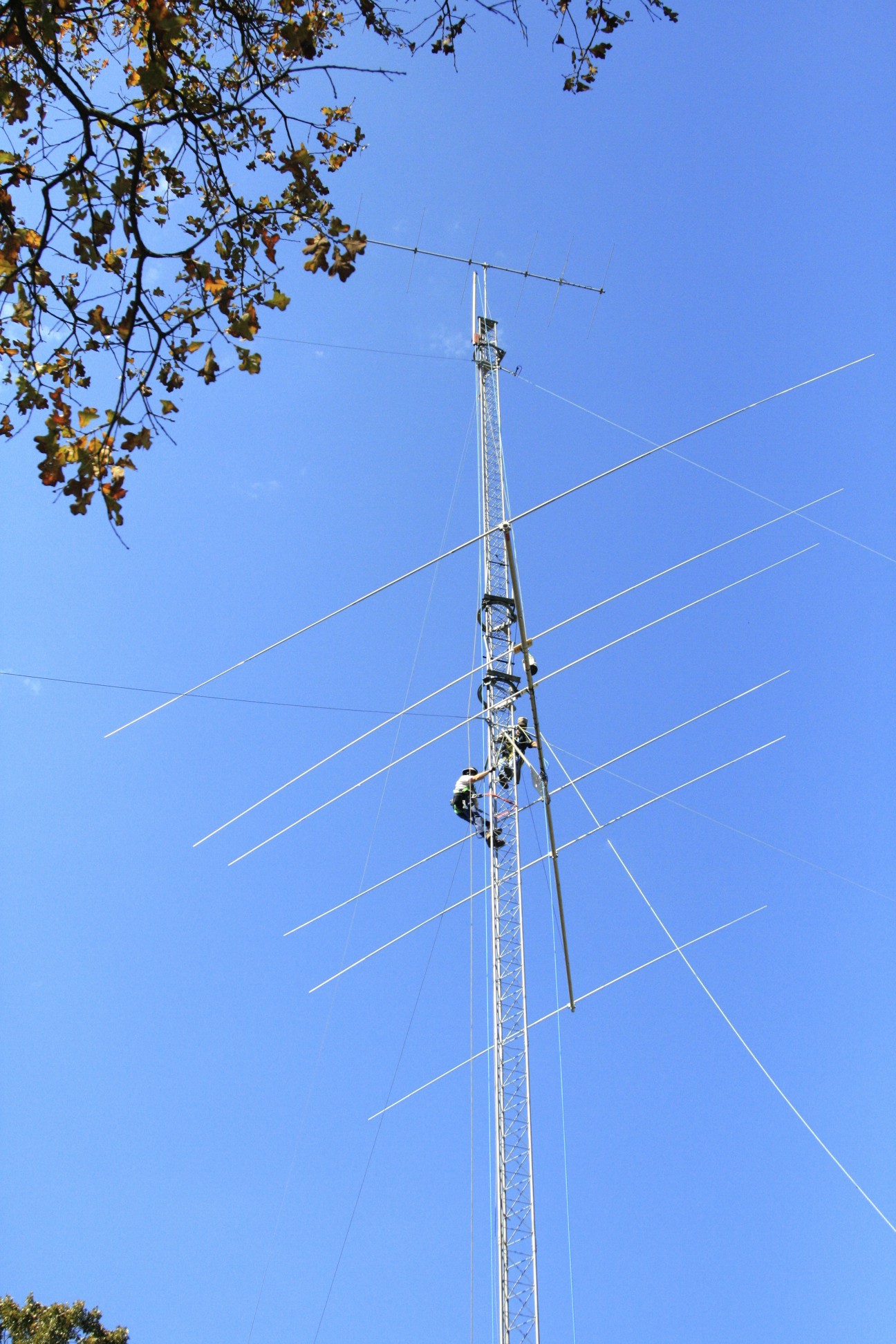

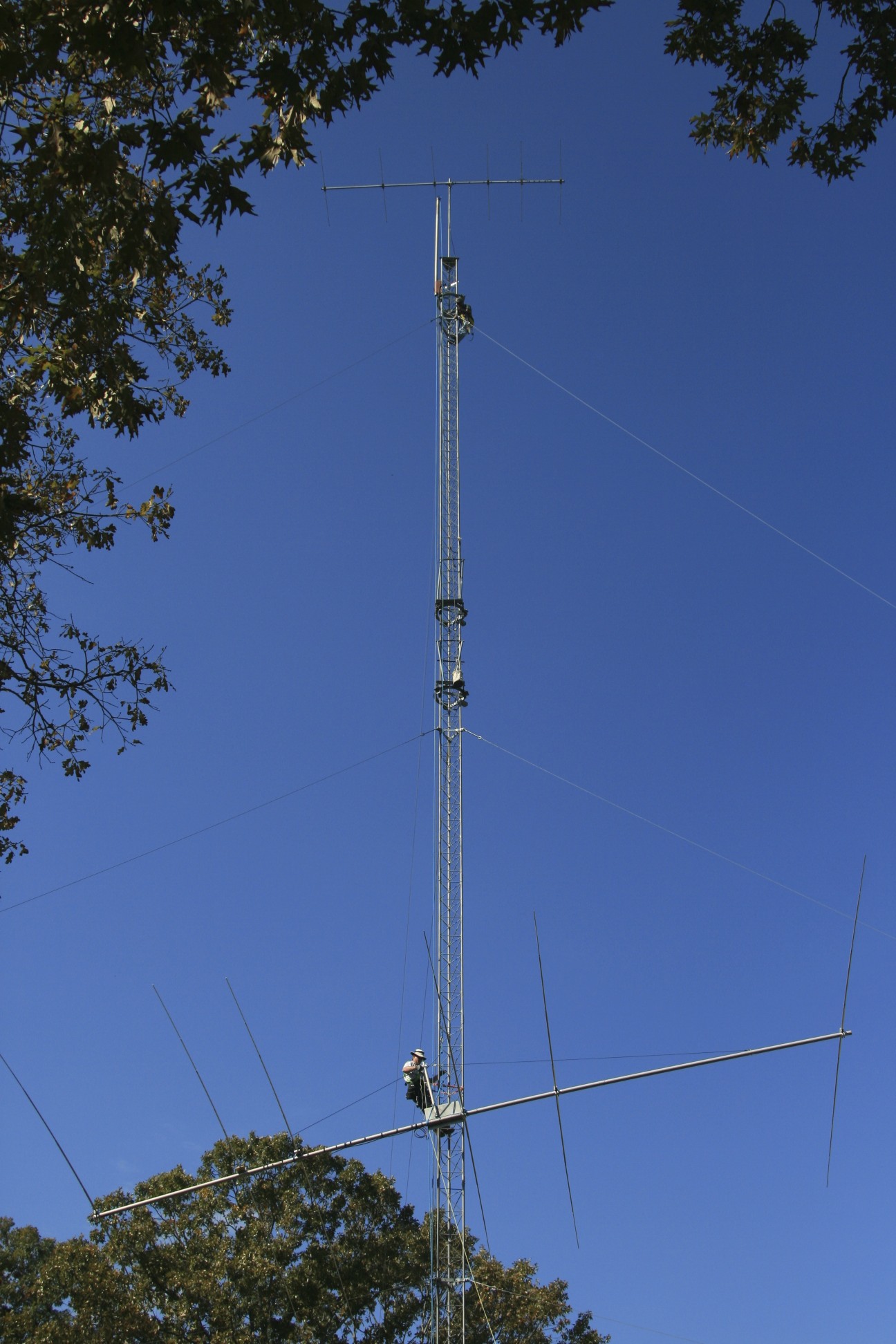

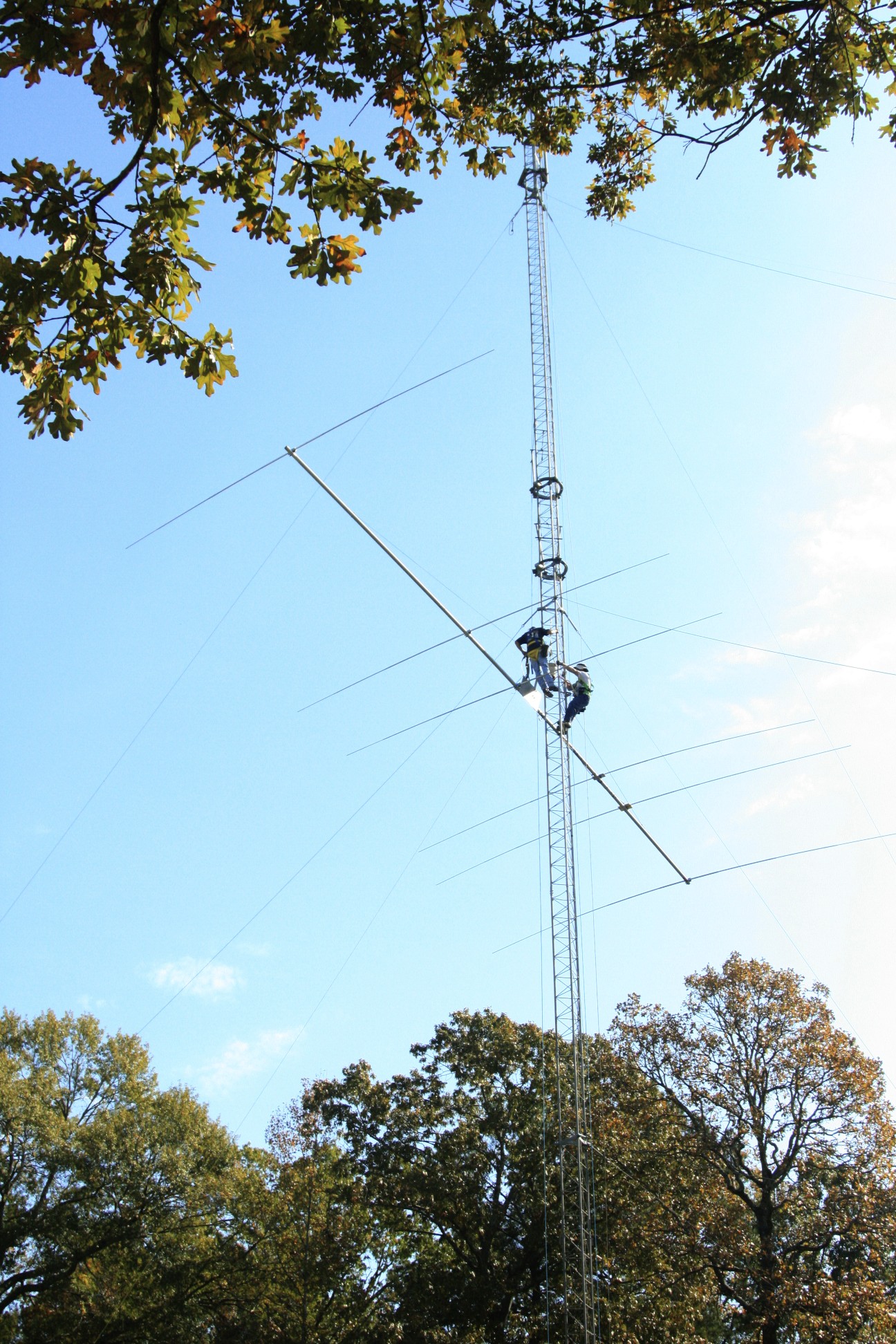

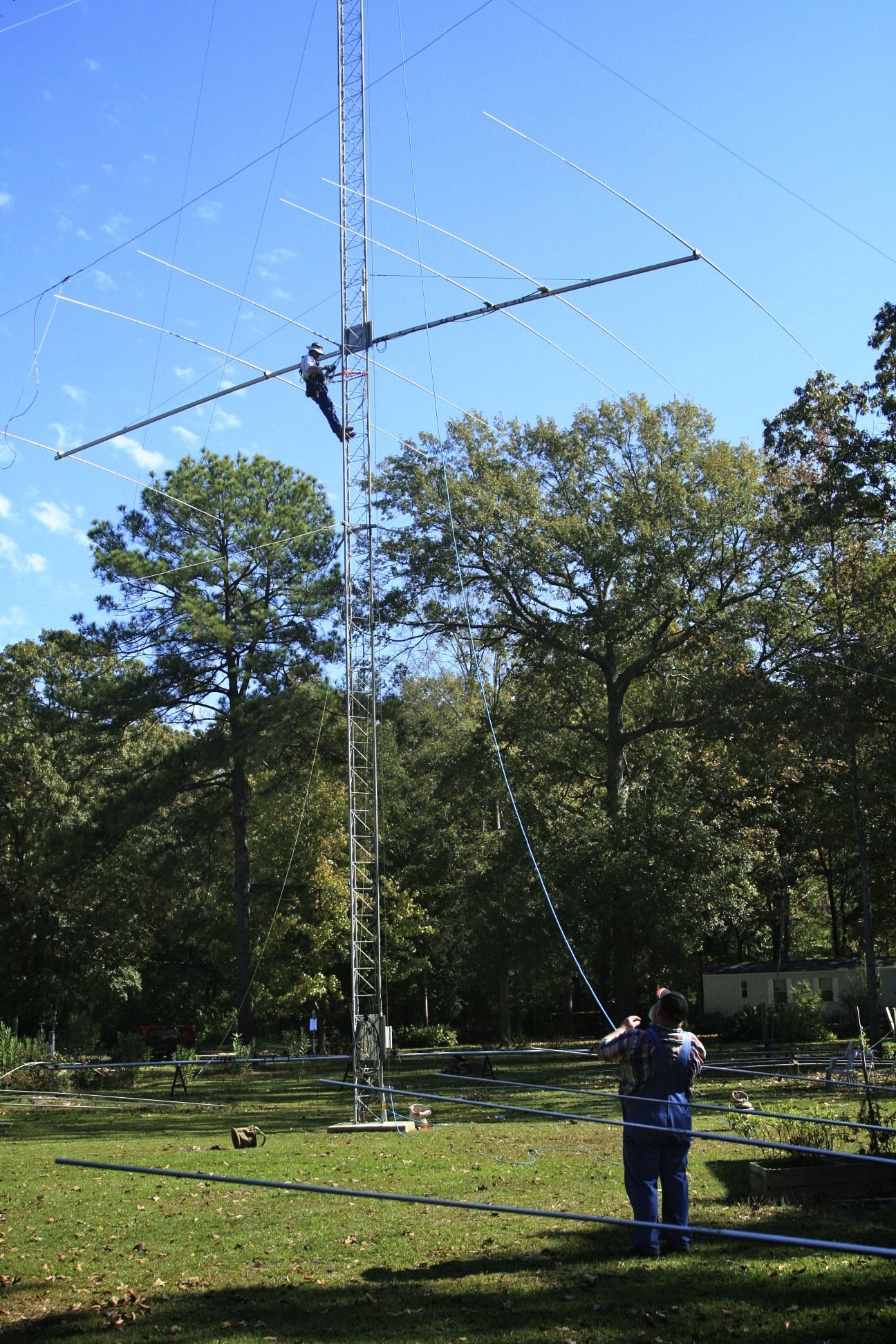

Moving first OWA from 40' testing position to 125' position on mast, other antenna to follow

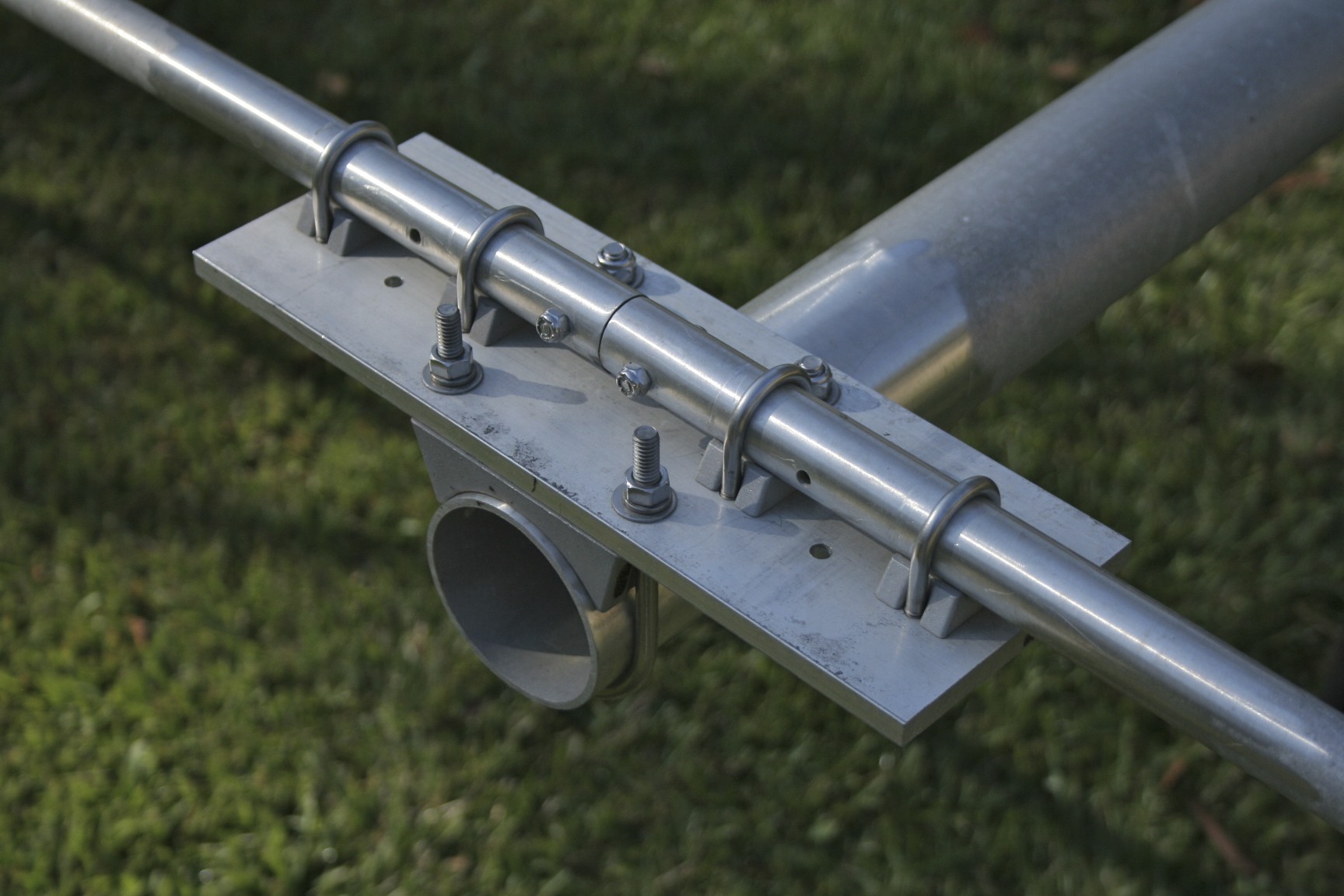

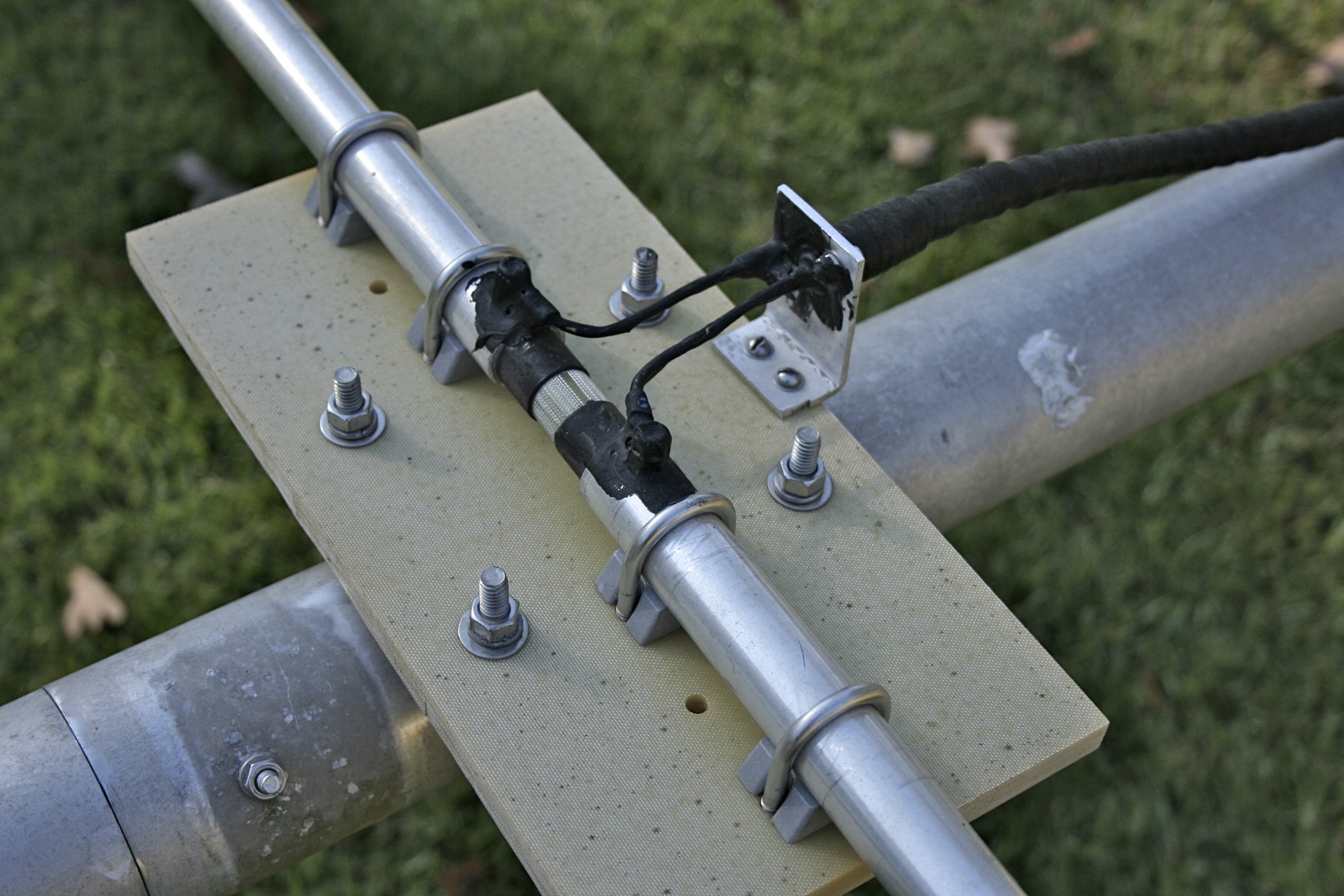

Close-up of OWA elements
Crew: Bobby,WM5H; Robert, KF5DME; Scott, W5WZ; Me, K5ER; Kevin, W5KGT; Doug, KF5RZH; Thomas, KD5OQC
Clicking this photo opens new window

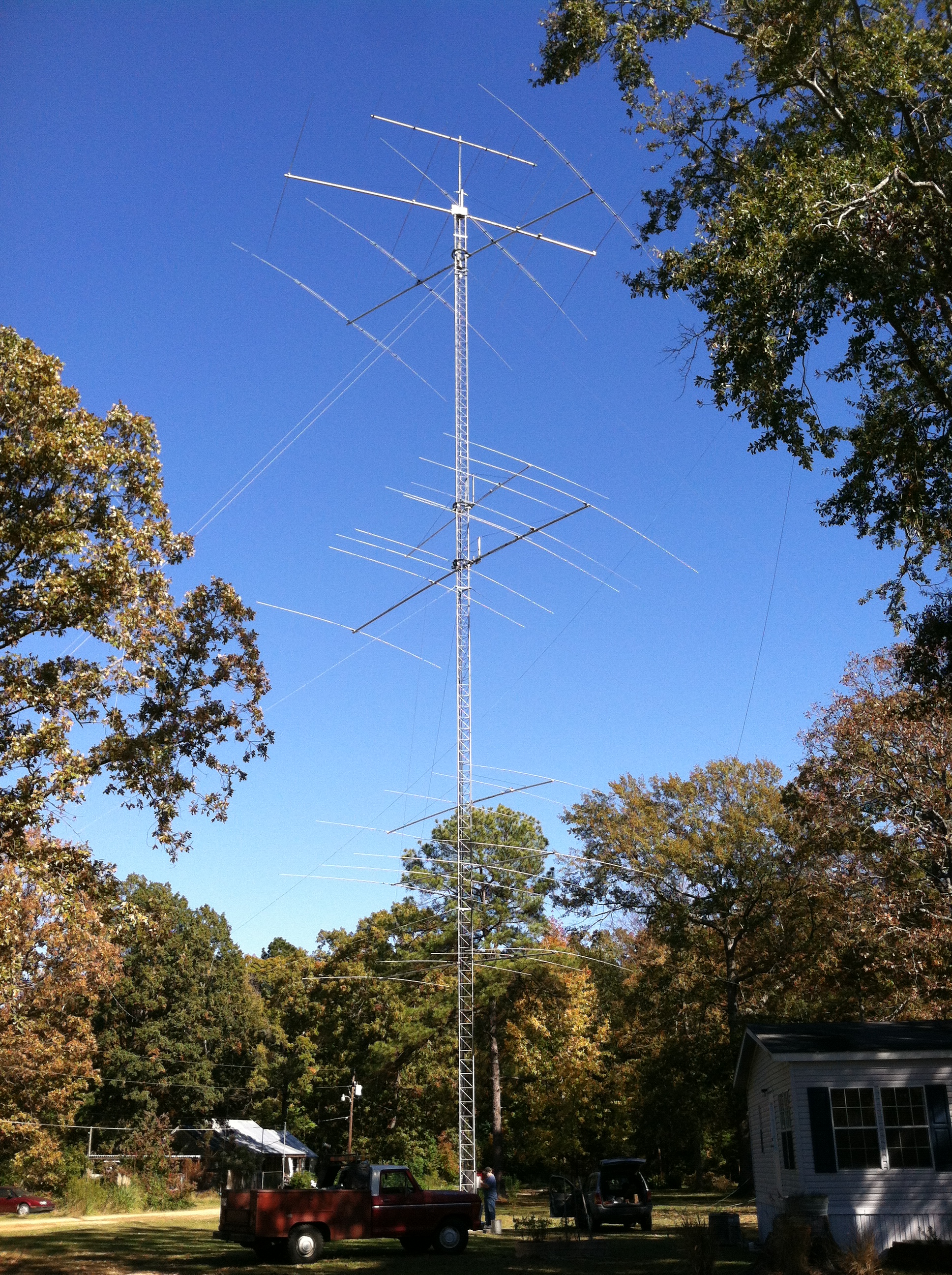

6el 6 mtr, 24' boom, on mast @ 137'
6el 20 mtr OWA, 44' boom, on mast @ 125'
4el 40 mtr, 44' boom, on TIC ring @ 116'
4el 15 mtr, 27' boom, on TIC ring @ 80'
6el 20 mtr OWA, 44' boom, on TIC ring @ 72'
4el 15 mtr, 27' boom, TIC ring pending @ 40'
4el 20 mtr, 26' boom, fixed NW @ 35'
4el 15 mtr, 27' boom, fixed NW @ 27'
